For all bulk goods. Individual paddle size. Selectable parameter-sets.

Direct drive without gearbox, powerful motor with miniature paddle, selectable pre-set parameter combinations for universal use – those are the main features of the new MBA800 rotating paddle series for level measurement. The adjustment of the different motor control parameters can be adapted for different types of bulk goods and their behaviour in the respective application. These individual pre-adjustments of the stepper-motor regarding the switching behaviour, speed, stoppage detection and freewheeling test can be selected in any way with 8 parameter sets. Other variations of the MBA800 series can be used independently of the desired paddle size in all bulk materials.

Advantages:

• Paddle size is freely selectable (from miniature paddle up to a span of 2 metres)

  without gearbox without return spring without leaf spring without slip clutch

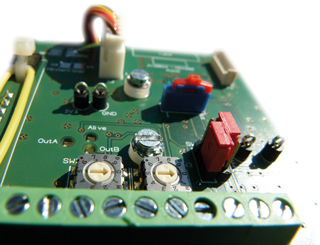

  incl. stepper motor incl. magnetic slip clutch incl. selectable application related parameter sets incl. selectable torque (sensitivity)

To make the settings user-friendly, guide parameters were defined with which parameter combinations can be set in advance. Naturally, the combinations can be readjusted according to customer-specific requirements.

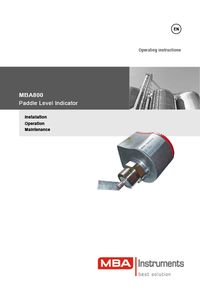

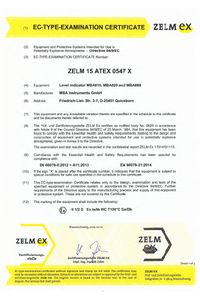

Product Information /Operation Manual / ATEX-certificate
